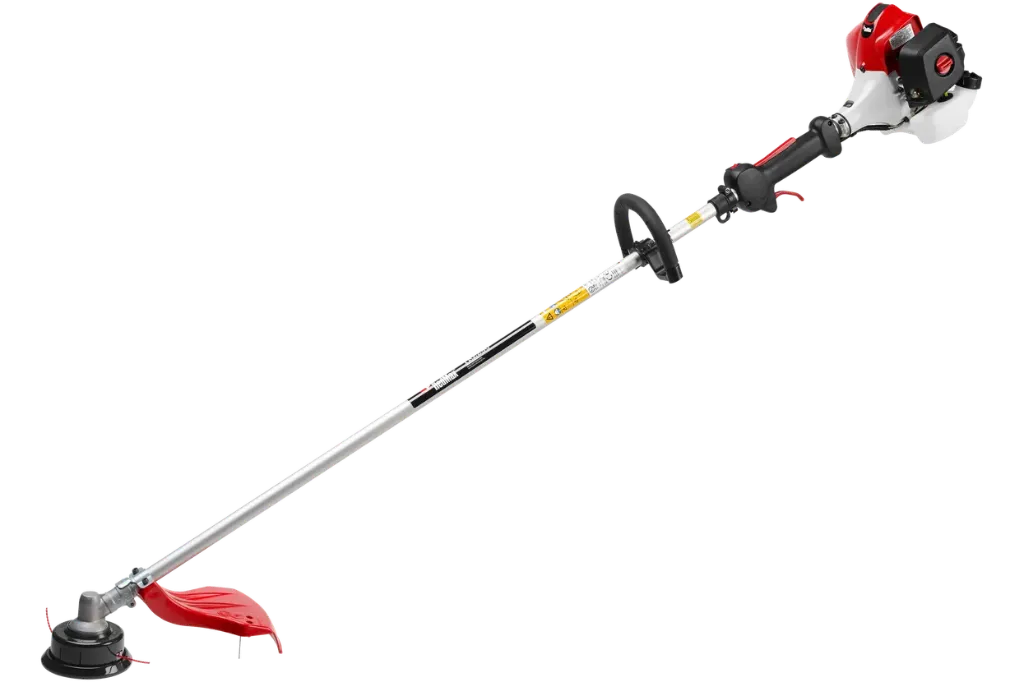

RedMax Trimmer TRZ230S

This RedMax trimmer is a powerful performer for homeowners as well as commercial contractors. The TRZ230S features a 22.5 cc, 0.94 horsepower engine and its light weight makes the trimmer extra portable for landscaping use. A Strato-Charged engine ensures up to 20% better fuel economy than a traditional two-stroke engine while increasing torque and improving emissions. A steel drive shaft with 7-point splined engagement ensures durability and quick acceleration.

309.00 309.00
309.00

Engine


Cylinder displacement

1.37 cu.inch

Clutch engagement speed (±120)

4,000 rpm

Electrode gap

0.03 in

Fuel Consumption

450 g/kWh

Fuel tank volume

21.64 fl oz

Idling speed

3,000 rpm

Maximum rpm output shaft

8,208 rpm

Output shaft power

0.94 hp

Spark Plug

NGK BPMR8Y

Torque, max.

1 Nm

Torque, max. at rpm

6,500 rpm
Product data


Drive gear angle

60 °

Gear ratio

1.462
Emission


Exhaust emissions (CO average) CARB

495.18 g/kWh
Dimensions


Weight (excl. cutting equipment)

10.14 lbs
